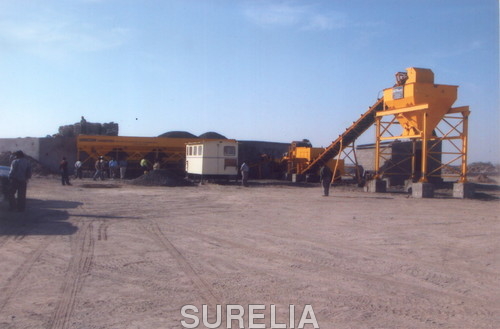

Wet Mix Macadam Plant

Wet Mix Macadam Plant
Wet Mix Macadam Plant
Product Code : 09
Product Description

Wet Mix Macadam

We are involved in providing a wide range of Wet-Mix Macadam Plant to the patrons. These products are manufactured using high-grade components and accessories at our production unit. Available in fixed or variable speed drives, the plant has adjustable gates at its bins. Owing to the design of twin shaft pug mill, aggregates & additives can be mixed quickly, continuously and homogeneously. Further, these wet mix Macadam plant are subject to stringent checking to ensure their dimensional accuracy, resistance to corrosion and compliance with set industrial benchmarks

Four Bin System
4 Bin aggregate. Feeder unit with storage bin 7.5 M3 each for 100 TPH & 12 M3 each for 180 TPH. Feeder bins are provided with auxiliary belt conveyor. Sand Bin is provided with vibrator.

Steep bin walls and valley angles allow free flow of aggregates from the feeders minimizing hand up of materials in the corners and brinding with sticky aggregates. The bins are equipped with adjustable gates. The optional variable speed drive with proportional controls, offers greater flexibility and accuracy of operation.

Pug Mill Unit
The Twin shaft pug mill design provides fast, continuous and homkogenous mixing of aggregates. The shafts are mounted on extra heavy resistant alloy steel selection for paddle arm and tips ensures a long life. The liner plates are corrosion and abrasion resistant.

Water Arrangement
Self-priming pump and spray bar with water flow meter for accurate metering Control from the main operating panel.

Controls and Automation
The weather protected cabin houses the user-friendly controls that are specifically designed fo rconstruction site condition. The control panel ensures sequential operation of the various deives nad precise control. An emergency stop in the form of a push button located close to the pug mill unit affords additonal safety.

Storage Silo
The storage silos 12 Ton in 100 TPH (Option as required) & 25 Ton in 180TPH is rigid, easy to erect. Anti Segregation hopper at discharge point minimizes mix segregation. Fast opening hydraulically operated gates facilitate quick discharge of mix material into the truck without segregation.

Technical Specifications

WMM - 100
WMM - 180
100 TPH
180 TPH
Four Bin Feeder

12 x 4 = 48 MT
19 x 4 = 76 MT
Bin Feeding Width
2.9 M
2.9 M
Auxiliary Belt Conveyor
W 500 mm / 2 HP
W 500 mm / 2 HP
Gathering Belt Conveyor
W 600 mm / 10 HP
W 750 mm / 10 HP
Bin Vibrator
1 HP
1 HP
Conntected Load
19 HP
21.5 HP

Screening Area
1.4 M2
1.4 M2
Sonnected Load
3 HP
3 HP

W 600 mm / 7.5 HP
W 750 mm / 10 HP
Pug Mill

1.5 Cu. m
2 Cu. m
No. of Arms
11 x 2 = 22
15 x 2 = 30
Connected Load
30 HP
40 HP
Water Pump
Connected Load
3 HP
3 HP
Hydraulic Power Pack
Connected Load
3 HP
5 HP
Storage Silo

12 TON
25 TON
Load out Conveyor

W 600 mm / 10 HP
W 750 mm / 12.5 HP

Total Connected Load

75.5 HP
92.5 HP
Generator set
Recommended Capacity
80 KVA
125 KVA
