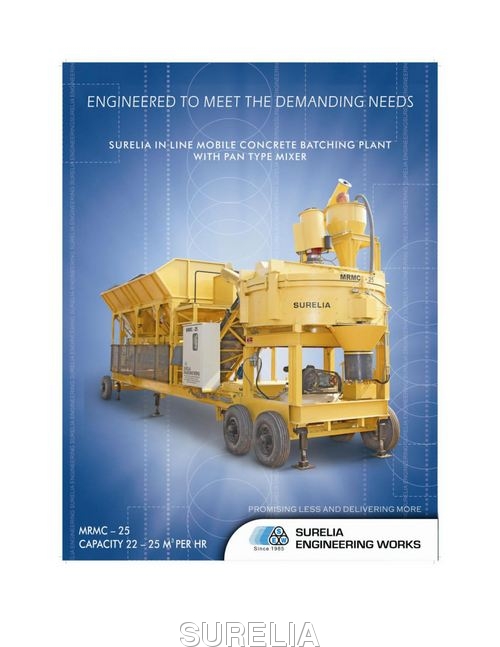

“SURELIA“ IN Line Mobile concrete batching Plant with pan type mixer Model: “SURELIA†MRMC – 25 having capacity 22 – 25 M3 Per hr SALIENT FEATURES:
- Available in 25 M3 / hr. Capacity.
- Rigid construction of main chassis; fabricated from rolled mild steel material.
- Mixer – PAN type, for continuous mixing.
- Replaceable Bottom Liner, Side Liner and Tips.
- Compact design for easy of transportations & shifting by towing also.
- Loading of aggregate / Sand hoppers by Wheel loader / JCB.
- Microprocessor based control panel with integral computerized batch controller accommodates 9 different mix recipes.
- Fully Automatic Plant with Electronic Weighing of Aggregate/Sand/Cement.
- Water by digital meter.
- Plant can be erected & commissioned within two day.
- Inbuilt Water and Additive tank.
- Complete plant can be transported in one 40 foot trailer.
- Plant only requires Electric Power Supply, Water Piping / Aggregate Sand feeding.
OPTIONAL:
- Discharge Conveyor.
- Cement Silo.
|
MODEL
|
SURELIA - 25
|
|
Sr. No.
|
Description
|
HP
|
|
|
1
2
3
4
5
6
7
|
Mixture
Power Pak
Gathering Conveyor
Compressor
Water Pump
Bin Vibrator
Additive Pump
Cement Screw Conveyor
Charging Conveyor
TOTAL
|
30 HP
02 HP
7.5 HP
03 HP
02 HP
0.25 HP
58.25 HP
|
|
|
DIMENSIONS
|
4 BINS
|
|
|
Total Length
Total Width
Agg. Charging Height
|
12 Meter
2.4 Meter
3.2 Meter
|
|
PAN MIXER
Output Rate
Output / Mix
Mixer Motor
|
22 – 25 M3/hr
1300 Liter
30 HP
|
|
|
Sand / Aggregate
Hopper Cap. Each
Water Tank
Water Pump
Additive Tank
Additive Pump
|
2 / 4 Hopper
3.5 M3
800 Liter
1 No.
Inbuilt
1 No.
|
|
CONNECTED POWER
|
58.25 HP
|
|
|
Optional
|
Discharge Conveyor
|
10 HP
|
|
|
Weight (Approx)
|
10 Ton
|
|
Specifications are subject to change without notice due to modification, alteration or custom engineering.
|
