Mobile Concrete Batching Plant

Mobile Concrete Batching Plant
Mobile Concrete Batching Plant
Product Code : 12
Product Description

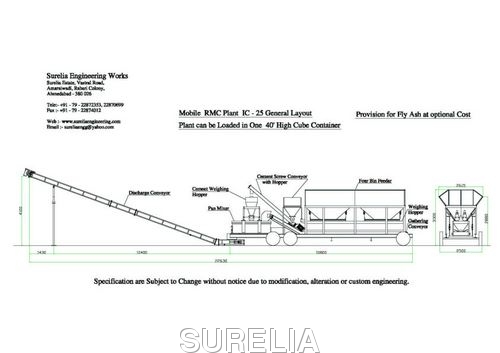

Mobile Concrete Batching Plant

We offer a wide range of superior quality Mobile Concrete Batching Plant. These Mobile plants are available in a number of models. The plant comprises of adequate capacity gravel & sand hoppers, weighing conveyor suspended on electronic load cells, Pan Type mixer unit, and additive tank. Cement silo with screw conveyor, Rubber belt type charging conveyor, PLC based control panel. These batching plants are fabricated by making use high-grade raw material, sourced from authentic vendors. Moreover, these offered products are developed in compliance with the set international standard, which further ensures quality of the same.


SALIENT FEATURES:

    * Available in 25 M3 / hr. Capacity.

    * Rigid construction of main chassis; fabricated from rolled mild steel material.

    * Mixer PAN type, for continuous mixing.

    * Replaceable liner Tiles and Tips in the mixer.

    * Compact design for easy of transportations & shifting by towing also.

    * Loading of aggregate / Sand hoppers by Wheel loader / JCB.

    * Microprocessor based control panel with integral computerized batch controller accommodates 9 different mix recipes.

    * Fully Automatic Plant with Electronic Weighing of Aggregate/Sand/Water/ Cement.

    * Plant can be erected & commissioned within two day

    * Inbuilt Water and Additive tank.

    * Complete plant can be transported in one 40 foot trailer.

    * With Discharge Belt Conveyor.

    * Plant only requires Electric Power Supply, Water Piping / Aggregate Sand feeding.
