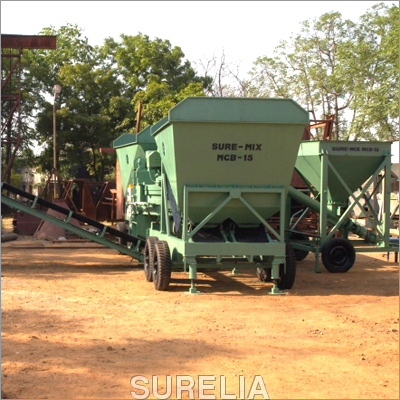

Mobile Concrete Batching Mixing Plant

Mobile Concrete Batching Mixing Plant   Next >>

Product Code : 03

Product Specification
Salient Features
  • Available in 15 m3 / 20 m3 / 125 m3 / h - Capacity
  • Compact Design for easy to Transportation and Shifting by Towing Also
  • Loading of Aggregate / Sand Hoppers by Wheel Loader / JCB
  • Microprocessor Based Control Panel with integral Computerized Batch Controller accommodates Different Mix Receipes - 5
  • Fully Automatic Plant with Electronic Weighing of Agg. / Sand / Water / Cement
  • Plant can be Erected & Commissioned withing One Day
  • Complete Plant can be Transported in One 40 foot Trailer
  • Plant Only requires Electric power Supply, Water Piping / Agg. Sand Feeding
  • With Discharge Belt Conveyor
  • High Pressure Cleaner
Optional
  • Chemical Additive System
  • Printout System
  • Cement Silo.
Dimensions
 4 Bins
 4 Bins
Total Length
Total Width
Total Height
net Weight
 8705 mm
2135 mm
2750 mm
7 Ton
 8705 mm
2135 mm
2750 mm
9 Ton
Pan Mixer
Output Rate
Volume
Output / Mix
Mixer Motor
 12-15 m3/hr.
1200 Lt.
750 Lt.
20 HP
 18-20 m3/hr.
1200 Lt.
750 Lt.
30 HP
Sand / Aggregate
Hopper Cap. Each
Water Pump
 2/4 Hopper
2.5 m3
2 Nos.
 2/4 Hopper
2.5 m3
2 Nos.
Connected Power
 50 HP
 60 HP
