Concrete Batching Mixing Plants

Concrete Batching Mixing Plants
Concrete Batching Mixing Plants
Product Code : 04
Product Description

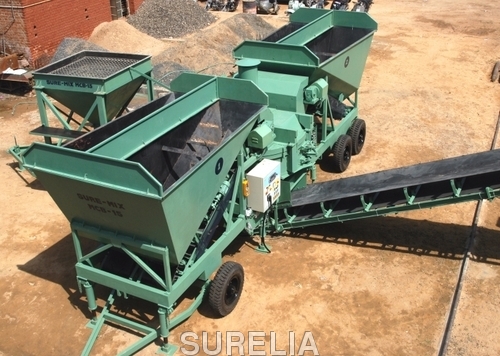

 Concrete Batching Mixing Plants

We specialize in designing and fabricating a wide range of brilliant Concrete Batching Mixing Plants. The system finds wide application in various building construction process. We offer technological advanced and precision engineered concrete batching & mixing plant. Fabricated using fine raw material these are widely appreciated across the construction industry for durability, accurate dimension and sturdy construction. We offer static concrete batching mixing plants at the most competitive prices. We offer this compact yet highly effective equipment at market leading prices.

Salient Features

  • Available in 15 m3 / 20 m3 / 125 m3 / h - Capacity
  • Compact Design for easy to Transportation and Shifting by Towing Also
  • Loading of Aggregate / Sand Hoppers by Wheel Loader / JCB
  • Microprocessor Based Control Panel with integral Computerized Batch Controller accommodates Different Mix Receipes - 5
  • Fully Automatic Plant with Electronic Weighing of Agg. / Sand / Water / Cement
  • Plant can be Erected & Commissioned withing One Day
  • Complete Plant can be Transported in One 40 foot Trailer
  • Plant Only requires Electric power Supply, Water Piping / Agg. Sand Feeding
  • With Discharge Belt Conveyor
  • High Pressure Cleaner
Optional
  • Chemical Additive System
  • Printout System
  • Cement Silo.
Dimensions
4 Bins
4 Bins
Total Length
Total Width
Total Height
net Weight
8705 mm
2135 mm
2750 mm
7 Ton
8705 mm
2135 mm
2750 mm
9 Ton
Pan Mixer
Output Rate
Volume
Output / Mix
Mixer Motor
12-15 m3/hr.
1200 Lt.
750 Lt.
20 HP
18-20 m3/hr.
1200 Lt.
750 Lt.
30 HP
Sand / Aggregate
Hopper Cap. Each
Water Pump
2/4 Hopper
2.5 m3
2 Nos.
2/4 Hopper
2.5 m3
2 Nos.
Connected Power
50 HP
60 HP
