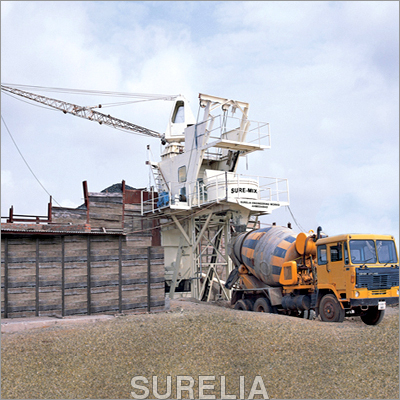

Concrete Batch Mix Plant

Concrete Batch Mix Plant
Concrete Batch Mix Plant
Product Code : 01
Product Description

Concrete Batch Mix Plant

We offer technological advanced and precision engineered Concrete Batching & Mixing Plant. Fabricated using fine raw material these are widely appreciated across the construction industry for durability, accurate dimension and sturdy construction. Our complete range of concrete batching mixing plants is widely preferred by our clients across the globe as it delivers precise mixture results. These are extensively used in construction. This plant is acknowledged for its outstanding features like greater functional reliability and perfect mixing of construction material. We offer this compact yet highly effective equipment at market leading prices.

Raw Material Storage

Star Batcher

Dragger Boom: Dragger boom is to pull the material at its optimum working length. Twing bucket reinforced with hard facing electrodes for better life, suitable blade for easy drag.

Dragger Cabin: Fitted on balanced ball bearing ring for smooth swing. Overall view from the top and all control are within the reach of operator. Comfortable seat for extended working hours without fatigue.

Compartment - Type Batcher: Four bin hopper for material storage.

Material Feeding Media: Free flowing, Weighing in skip bucket through pneumatically operated gate with interlocking device for uninterrupted chronological sequence.

Batch Weighing: PLC/Microprocessor based electronic batch weighing system for aggregates, Cement. The total cumulative per batch can be monitored on digital LED in operator cabin.

Skip Drive Unit: Skip towed / lifted by wire rope drum, Fitted with Electromagnetic fail safe spring loaded D.C. brake, Working on Suitable Rectifier transformer unit.

Skip Unloading  Device
A unique unloading mechanism with bottom opening. Downward facing self locking door to unloading material at optimum perfection with minimum wastage.

Mixing Unit: Pan Type Turbo Mixer comprises of spring mounted mixing arms, Mixer liner for wear resistance, Inspection window.

Cement Screw Conveyor: For transferring cement from Silo / Storage hopper  to cement weighing hopper.

Water Batching: Self-priming water pump synchronized with Turbine Flow meter having panel mounted Microprocessor based registration unit for accurate and desired flow rate of Water batting to Pan Mixer.

Controls: Auto / Manual control for Aggregate and Cement batching and weighing-loading, unloading, emergency stop etc. are incorporated in control panel within easy reach of the Operator.

Plant Operator Cabin: Located at the center of plant for Clear view of Aggregate loading / unloading, which enables easy reach and faster communication.
